Automotive CXPI Communication Application Circuit A (Driver-Receiver Board / CXPI Commander Node)

CXPI, a next‑generation automotive communication protocol, delivers low cost and high responsiveness to support efficient control of various in‑vehicle functions.

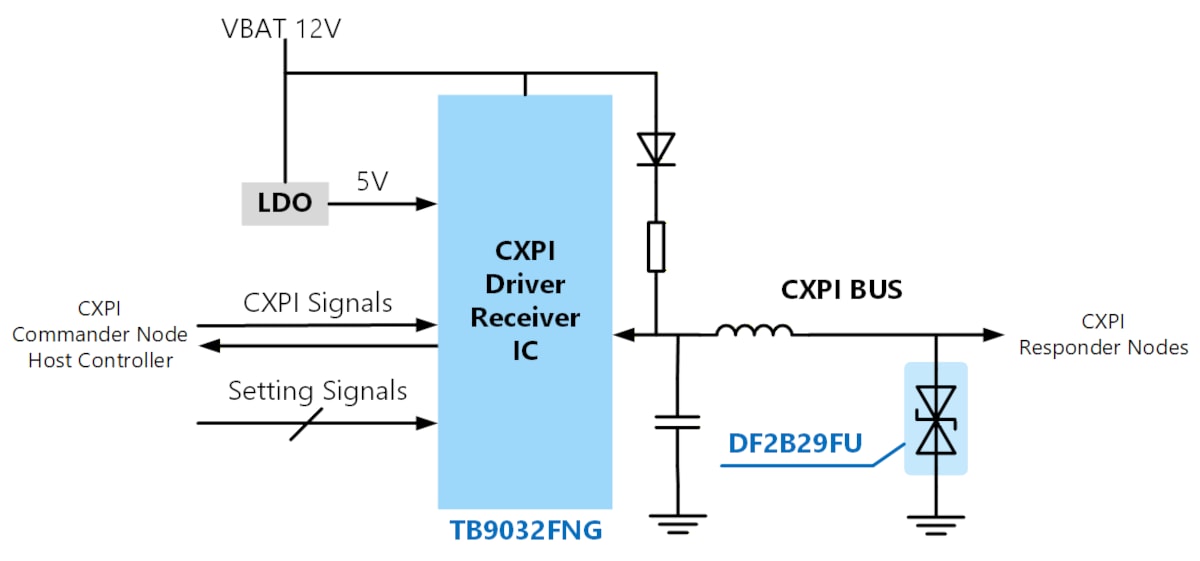

This reference design implements a CXPI driver/receiver circuit for in-vehicle CXPI communication.
The CXPI driver/receiver IC TB9032FNG is used as the communication interface.
When combined with a host controller equipped with a CXPI controller, the system operates as a CXPI commander node, enabling reliable connectivity to the CXPI bus.

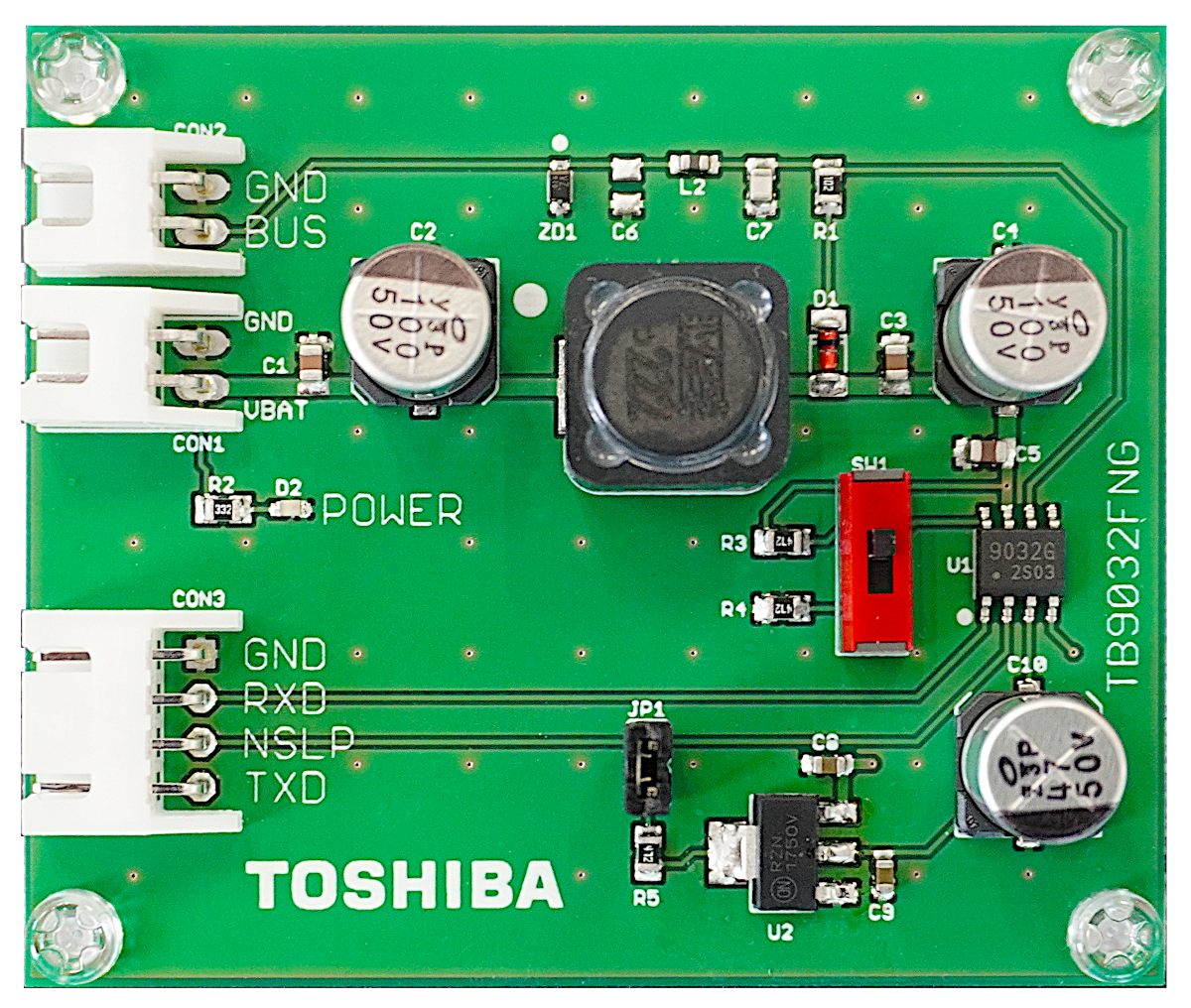

Board Appearance
Board Appearance
TB9032FNG DF2B29FU DF2B29FU

Click on components for more details

特性

  • By combining with an MCU that integrates a CXPI controller compliant with ISO 20794-4, CXPI communication can be easily implemented.
  • Up to 16 responder nodes can be connected when used as a zone ECU.
  • Equipped with overtemperature, undervoltage, and abnormal output detection to ensure the safety required for automotive applications.
  • Can be switched between Commander node and Responder node operation.
  • Outer dimensions: 65mm x 55mm

說明

Main Ics CXPI driver receiver (Physical layer) TB9032FNG
Input Power Supply Voltage DC 6V to 16V (Typ. 12V)
Input Control Signal Voltage DC 4.5V to 5.5V (Typ. 5V)

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

*1:Actual PCB was designed on CR8000BD. The other files were made from CR8000BD file.

*2:The data was generated on CR8000BD.

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Network communication IC CXPI Communication Circuit・1 Automotive CXPI communication driver receiver
ESD protection diode (bi-directional type) CXPI Communication Circuit・1 Bidirectional TVS Diode (ESD Protection Diode), +/-24 V, SOD-323(USC)
