1.6kW, 80Plus Platinum Class, High efficiency Server AC-DC Power supply

This reference design provides design guide, data and other contents of 1.6kW 80Plus Platinum class power supply using Semi-bridgeless/Isolated phase shift full bridge.

Features of 1.6kW, 80Plus Platinum class, high efficiency server AC-DC power supply .

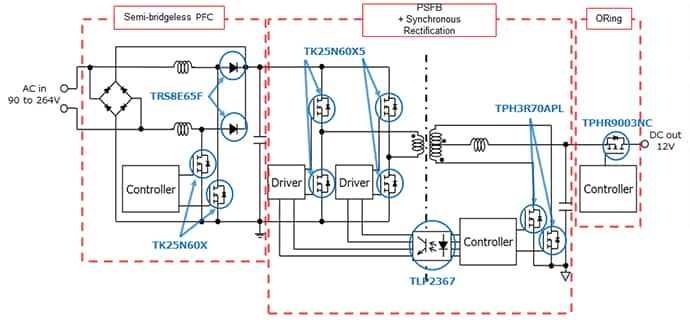

Simple block diagram of 1.6kW, 80Plus Platinum class, high efficiency server AC-DC power supply .

特性

  • 1U rack size high efficiency and high power output power supply
  • Total efficiency 93%(Vin=230V at 100% load condition)
  • Outline size : 307 mm x 133 mm x 43 mm(including the base plate under the PWB and the top plate covering over the heatsinks)
  • Provides appropriate power devices(MOSFET and SiC diode) and photocouplers totally

說明

Input voltage AC 90 to 264 V
Output voltage DC12V
Output power 0.8 kW(AC 100V system input), 1.6 kW(AC 200V system input)
Circuit topology Semi-Bridgeless PFC, Phase-Shift Full-Bridge + Synchronous Rectification, Oring Circuit for Output

Download overview material for solution (PDF:481KB)

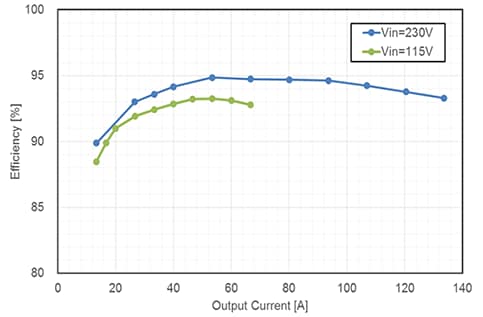

Efficiency curves of 1.6kW, 80Plus Platinum class, high efficiency server AC-DC power supply .
Efficiency Curves

設計文件

設計・文件 包含以下文件。

設計數據

設計數據包含以下內容。

*1:實際PCB在CR5000BD上設計。其他文件由CR5000BD文件生成。

*2:數據在CR5000BD上生成。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch 500V<VDSS≤700V) PFC・4 N-ch MOSFET, 600 V, 0.125 Ω@10V, TO-247, DTMOSⅣ-H
SiC Schottky barrier diode PFC・2 650 V/8 A SiC Schottky Barrier Diode, TO-220-2L
Power MOSFET (N-ch 500V<VDSS≤700V) Primary side・4 N-ch MOSFET, 600 V, 0.14 Ω@10V, TO-247, DTMOSⅣ-H
Power MOSFET (N-ch single 60V<VDSS≤150V) Secondary side・8 N-ch MOSFET, 100 V, 0.0037 Ω@10V, SOP Advance, U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Oring・10 N-ch MOSFET, 30 V, 0.0009 Ω@10V, SOP Advance, U-MOSⅧ
Photocoupler (photo-IC output) Communication between primary side and secondary side・4 Photocoupler (photo-IC output), High-speed, 50 Mbps, 5000 Vrms, SO6L
