Application Circuits of TPD4151F Square-Wave Control Type of BLDC Motor Driver
This reference design provides example circuit and design guide using Hall device/IC. The TPD4151F has 250V rating and built-in PWM to drive BLDC motor with square-wave control.
The TPD4151F can drive a BLDC motor directly without a PWN cotroller IC because of built-in a PWM circuit, a three-phase distribution circuit, high-side/low-side gate drivers, and output IGBT/FRD.
Suitable for AC100V main applications because of integrated 250V IGBT and FRD
Bulit-in an over temperature protecton circuit and an undervoltage protection circuit help to simplify board design
Description of control method of BLDC motor drive(square-wave control type and sine-wave control type)

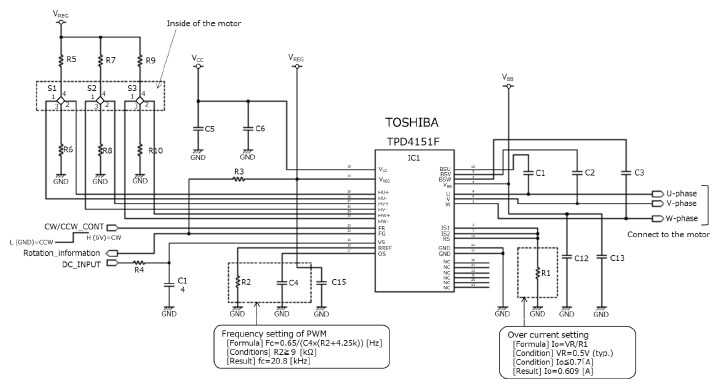

Application circuit example of BLDC motor dirve with TPD4151F
Design guide of using both a hall sendor and hall IC
