Motor Control Closed-loop System(Arduino Shield)

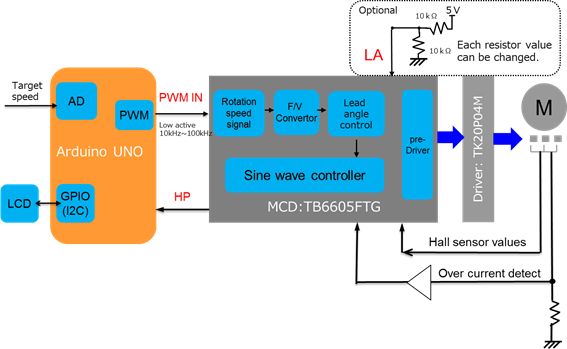

This reference design provides the Motor Control Closed-loop system using Toshiba's 3 phase brushless DC motor driver IC TB6605FTG. The board is designed as a plug-in board (Shield) for Arduino UNO platform.
This reference design provides the the Motor Control Closed-loop system using Toshiba's 3 phase brushless DC motor driver IC TB6605FTG.
The board is designed as a plug-in board (Shield) for Arduino UNO platform. effeciency.
Sine Wave BLDC motor controller
Power supply voltage
Attached Attached motor specifications
Middle speed motor 10V－24V/ 0.5A－10A/Output 26W/ 4000rpm
Motor driver output + MosFET
N ch+ Nch MosFET (Toshiba TK20P04M1)
TB6605FTG, TC75S5１F, TK20P04M1 (Arduino UNO is needed in MCD+MCU mode.)
