100 W LLC DC-DC Converter

This reference design provides design guide, data and other contents of 100 W LLC DC-DC Converter which uses Zero Volt Switching implemented using LLC resonance.

Board photo of 100 W LLC DC-DC Converter

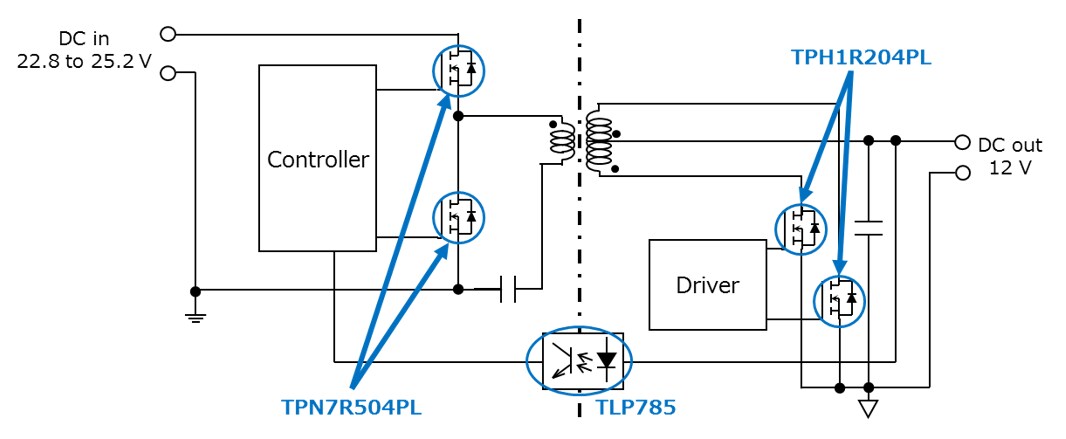

TPN7R504PL TPN7R504PL TLP785 TPH1R204PL TPH1R204PL

Click on components for more details

特性

  • Total efficiency : 88 % (Vin = 24 V, 100 % load)
  • Outline size : 110 mm x 110 mm x 35 mm (excluding input and output terminals on backside)
  • Uses optimum power MOSFETs and photocoupler

說明

Input voltage DC 22.8 to 25.2 V
Output voltage DC 12 V
Output power 100 W
Circuit topology LLC Resonance + Synchronous Rectification Circuit

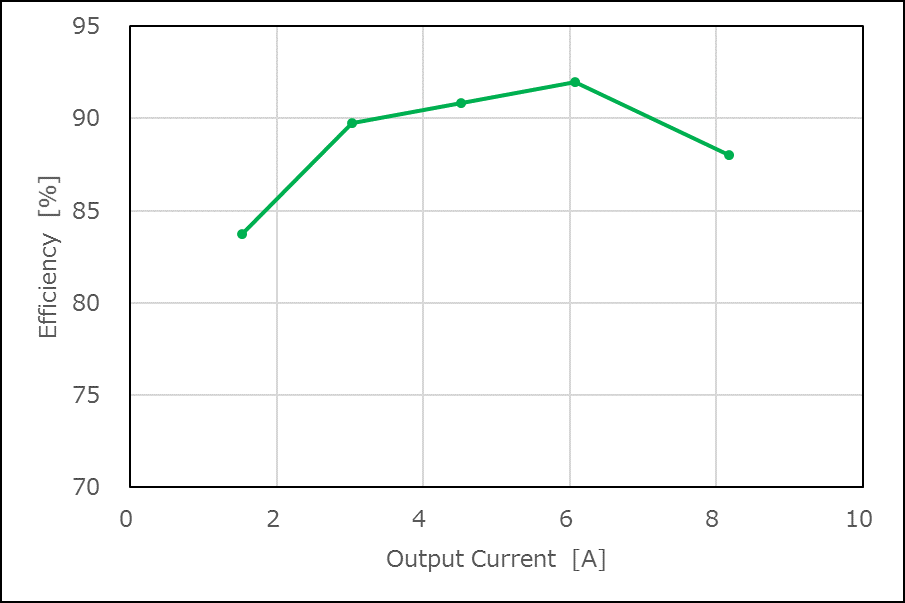

Efficiency Curve of 100 W LLC DC-DC Converter
Efficiency Curve

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch single 30V<VDSS≤60V) Primary-side main switch・2 N-ch MOSFET, 40 V, 0.0075 Ω@10V, TSON Advance, U-MOSⅨ-H
Power MOSFET (N-ch single 30V<VDSS≤60V) Secondary-side・2 N-ch MOSFET, 40 V, 0.00124 Ω@10V, SOP Advance, U-MOSⅨ-H
