200W主動式鉗位順向DC-DC轉換器

This reference design provides design guide, data and other contents of 1 kW server power supply using phase shifetd full-bridge DC-DC converter.
「Please note that 2SA1201-Y was designated as Not Recommended for New Design (NRND) as of April, 2026.J」

Exterior photo of 200 W active clamp forward DC-DC converter.

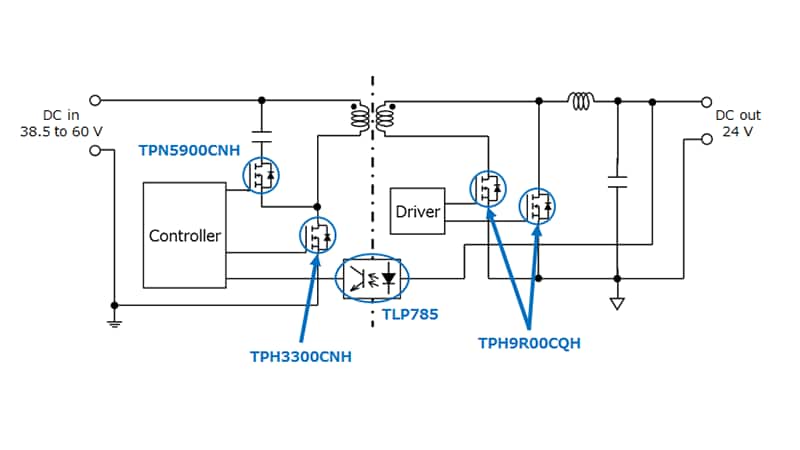

TPN5900CNH TPH3300CNH TPH9R00CQH TPH9R00CQH TLP785

Click on components for more details

特性

  • 總效率：90.8%（Vin＝48V，100%負載的條件下）
  • 外形尺寸：130mm×115mm×30mm（不包括背面的輸入和輸出端子）
  • 提供採用適合的功率MOSFET和光耦的解決方案

說明

輸入電壓 DC 38.5 to 60 V
輸出電壓 DC 24 V
輸出功率 10 to 200 W
電路拓撲 主動式鉗位順向＋同步整流

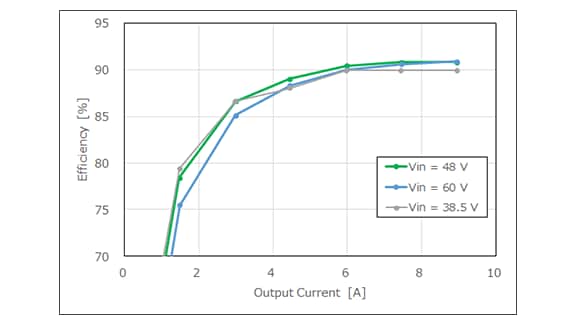

效率曲線
效率曲線

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch single 60V<VDSS≤150V) Primary-side main switch・1 N-ch MOSFET, 150 V, 0.033 Ω@10V, SOP Advance, U-MOSⅧ-H
Power MOSFET (N-ch single 60V<VDSS≤150V) Primary-side clamp switch・1 N-ch MOSFET, 150 V, 0.059 Ω@10V, TSON Advance, U-MOSⅧ-H
Power MOSFET (N-ch single 60V<VDSS≤150V) Secondary-side・4 N-ch MOSFET, 150 V, 0.009 Ω@10V, SOP Advance / SOP Advance(N), U-MOSⅩ-H
