Application Circuit of Low Noise Op-amp TC75S67TU for Ultrasonic Distance Sensor

Ultrasonic distance sensor used low noise Op-amp TC75S67TU Introduction of US distance sensor application of TC75S67TU US distance sensor application method and notes of TC75S67TU

Circuit

特性

  • Super low noize level
  • Measure to 6m
  • Small board size

說明

  • Ultrasonic distance sensor used low noise Op-amp TC75S67TU
  • Introduction of US distance sensor application of TC75S67TU
  • US distance sensor application method and notes of TC75S67TU

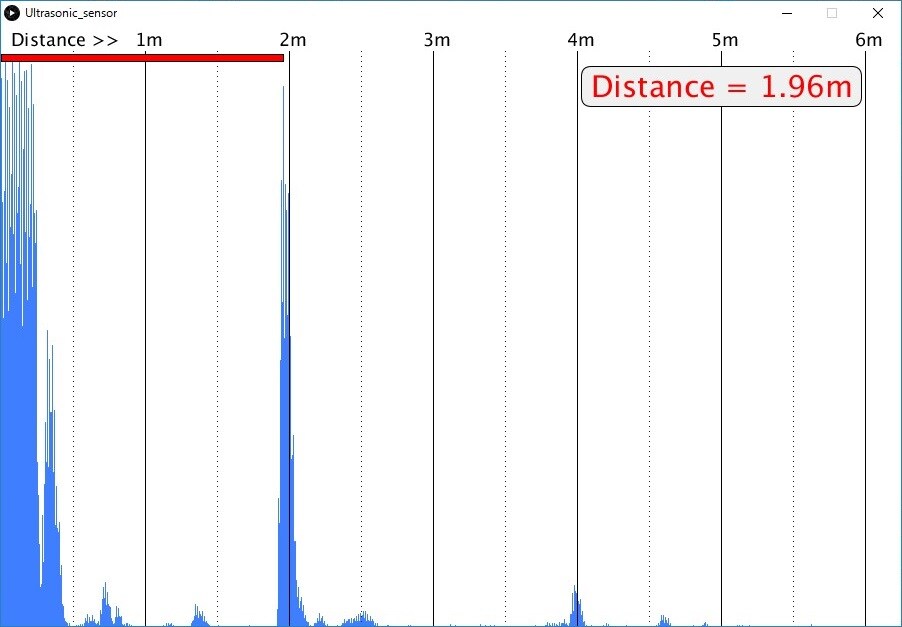

Measurement result
Measurement result

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Op-amp (CMOS) Amplifier section・3 Single Op-amp (CMOS), 5.5 V, +/-2.75 V, SOT-353F(UFV)
Low Dropout (LDO) Linear Voltage Regulator Sensor drive section・1 200 mA Fixed Output LDO Regulator, 3.3 V, SOT-553(ESV)
Switching diode Sensor section・2 100 V/0.215 A Switching diode, SOT-23(SOT23)
High frequency Schottky barrier diode Detector section・2 10 V/10 mA Schottky Barrier Diode, SOD-923
