3-Phase Inverter Using SiC MOSFET

This reference design provides design guide, data and other contents of the 3-phase inverter using 1200 V SiC MOSFET. It drives AC 440V motors.

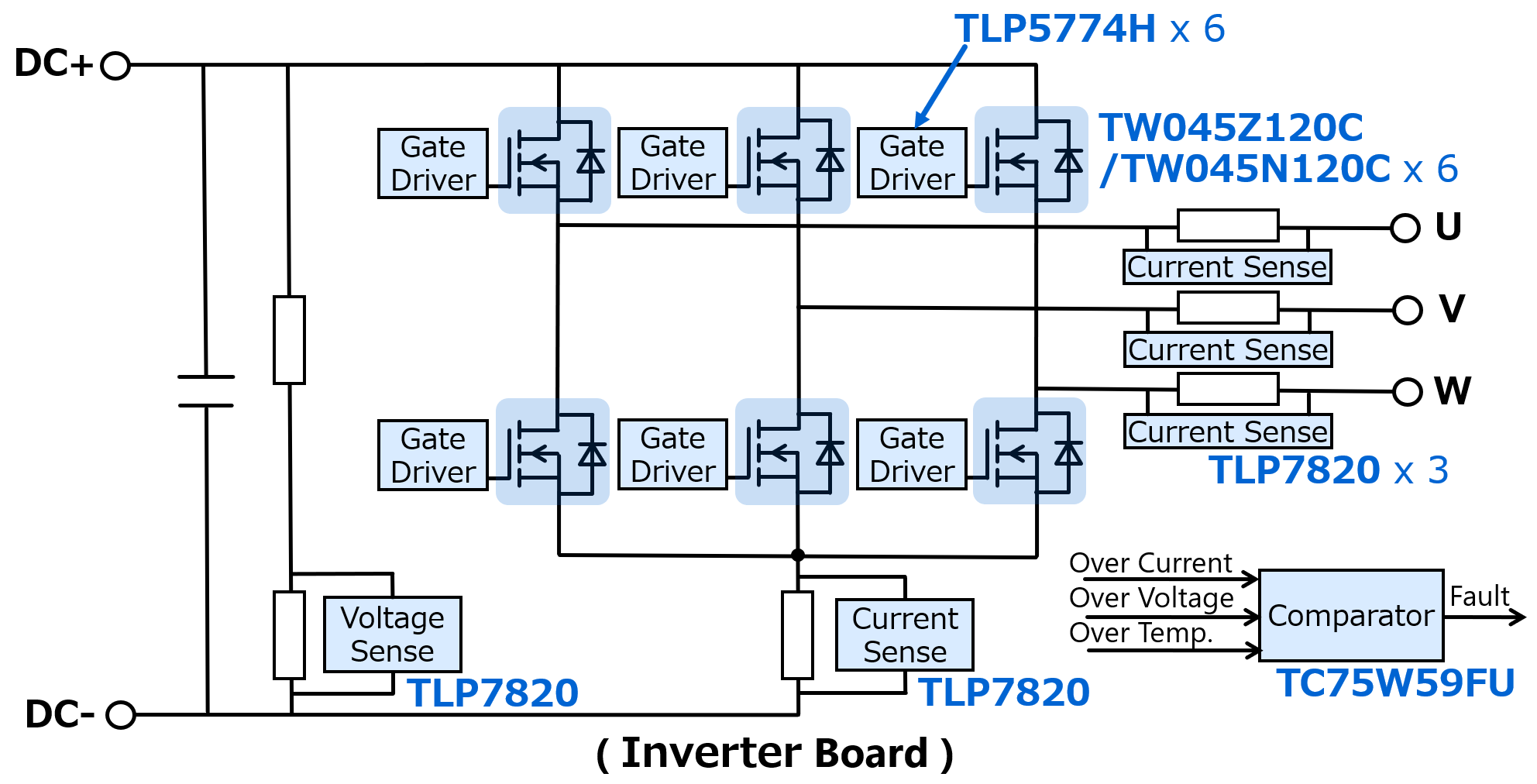

PCB Photo (Inverter Board)
TLP7820 TLP7820 TLP7820 TLP7820 TLP5774H TLP5774H TLP5774H TLP5774H TLP5774H TLP5774H TLP5774H TC75W59FU TC75W59FU TLP7820 TLP7820 TLP7820 TLP7820 TW045Z120C TW045N120C TW045Z120C / TW045N120C TW045Z120C / TW045N120C TW045Z120C / TW045N120C TW045Z120C / TW045N120C TW045Z120C / TW045N120C TW045Z120C / TW045N120C TW045Z120C / TW045N120C TW045Z120C / TW045N120C

Click on components for more details

特性

  • Drives AC 440 V motor using 1200 V SiC MOSFETs
  • Outline size : 250 mm x 145 mm (Inverter Board)
  • Uses optimum SiC MOSFETs, photocouplers, and operational amplifiers etc.

說明

Power In (AC-DC Board) 3-phase AC 340 to 440 V, 16 A (Max.)
Power Out (AC-DC Board) DC 530 to 600 V
Power Input (Inverter Board) DC 530 to 670 V
Power Output (Inverter Board) 3-phase AC 340 to 440 V, 15 A
Fault Detection Overcurrent(U-phase/V-phase/W-phase), Bus overvoltage, Bus overcurrent , Overtemperature(2 ch.)
Efficiency Curve (Example)
Efficiency Curve (Example)

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

*1:實際PCB在CR5000BD上設計。其他文件由CR5000BD文件生成。

*2:數據在CR5000BD上生成。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power SiC MOSFETs Inverter switching·6 N-ch SiC MOSFET, 1200 V, 0.045 Ω(typ.)@18 V, TO-247-4L(X), 3rd Gen.
Power SiC MOSFETs Inverter switching·6 N-ch SiC MOSFET, 1200 V, 0.045 Ω(typ.)@18V, TO-247, 3rd Gen.
Photocoupler (photo-IC output) Gate driver·6 Photocoupler (photo-IC output), IGBT driver, IOP=+/-4.0 A, 5000 Vrms, SO6L
Photocoupler(Isolation Amplifier) Isolated sensor·5 Photocoupler(Isolation Amplifier), Analog output, 5000 Vrms, SO8L(LF4)
Comparator (CMOS) Comparator for error detection·3 Dual Comparator (CMOS), 7 V, +/-3.5 V, SOT-505(SM8)
Op-amp (Bipolar) Sensor amplifier·2 Dual Op-amp (Bipolar), 12 V, +/-6 V, SOT-505(SM8)
Op-amp (CMOS) Sensor amplifier·3 Dual Op-amp (CMOS), 7 V, +/-3.5 V, SOT-505(SM8)
Op-amp (CMOS) Sensor amplifier·2 Single Op-amp (CMOS), 5.5 V, +/-2.75 V, SOT-25(SMV)
L-MOS SHS series (TC74LCX-equivalent) Gate logic control·3 One-Gate Logic(L-MOS), 2-Input/AND, SOT-505(SM8)
Point regulator (single output) Internal power supply·4 200 mA Fixed Output LDO Regulator, 5 V, SOT-353F(UFV)
Small-signal MOSFET Driver for photo coupler etc.·7 N-ch MOSFET, 30 V, 0.1 A, 3.6 Ω@4V, SOT-323(USM)
Small Low ON resistance MOSFETs Switching for isolated power supply·2 N-ch MOSFET, 30 V, 15 A, 0.0089 Ω@10V, TSOP6F

相關文件

我們提供有助於設計和考慮類似電路的材料，例如已安裝產品的應用說明。請點擊每個選項以查看內容。

相關參考設計

採用MOSFET的三相Multi-Level變頻器
