What is Thermoflagger™ ?
Thermoflagger™ provides a simple solution for detecting overtemperature conditions in conjunction with PTC thermistors.
Thermoflagger™ outputs the FLAG signal when it detects a change in the characteristics of a PTC thermistor.
Since multiple PTC thermistors can be connected in series with Thermoflagger™, it can monitor multiple locations for overtemperature conditions.
Thermoflagger™ allows you to realize overtemperature detection easily.

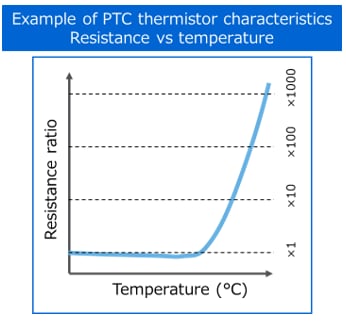

A PTC thermistor is a type of electronic device whose resistance increases dramatically when its temperature exceeds a certain point.
※PTC : Positive Temperature Coefficient
Lineup of Thermoflagger™
We plan to expand our lineup with various voltage resistances and packages in the future.
Part number |
PTCO |
PTC thermistor resistance range |
FLAG output latch |
FLAG output configuration [Note 2] |
|---|---|---|---|---|
1μA |
4.7kΩ ~ 10kΩ |
- |
Push-pull |
|
1μA |
4.7kΩ ~ 10kΩ |
✔ |
Push-pull |
|
10μA |
470Ω ~ 1kΩ |
- |
Push-pull |
|
10μA |
470Ω ~ 1kΩ |
✔ |
Push-pull |
|
1μA |
4.7kΩ ~ 10kΩ |
- |
Open-drain |
|
1μA |
4.7kΩ ~ 10kΩ |
✔ |
Open-drain |
|
10μA |
470Ω ~ 1kΩ |
- |
Open-drain |
|
| TCTH022BE | 10μA | 470Ω ~ 1kΩ | ✔ | Open-drain |
[Note 1] PTCO output current is a constant current supplied from Thermoflagger™ to the PTC thermistor.
[Note 2] When Thermoflagger™ detects an abnormality, it outputs a FLAG signal. The push-pull type consists of two MOSFETs stacked vertically, and the output current can flow in either direction. The open-drain type consists of one MOSFET, and the output current can only flow in one direction.
